Solusi Perlindungan Motor

Jalur kabel panjang yang digerakkan oleh variable frequency drives (VFD) dapat menyebabkan distorsi tegangan, lonjakan tegangan puncak, dan harmonisa orde tinggi, yang mengakibatkan penuaan kabel, kegagalan isolasi motor, panas berlebih, dan kerusakan bantalan. Hal ini memperpendek umur peralatan, mengurangi efisiensi sistem, serta meningkatkan tingkat kegagalan dan biaya perawatan.
Ikhtisar Solusi Masalah Nyata di Lapangan Solusi Perbandingan Solusi

Kegagalan motor yang sering terjadi: bagaimana memastikan operasi yang stabil dan memperpanjang masa pakai?

Industri dengan konsumsi daya tinggi sering kali membutuhkan kabel panjang, dengan beberapa sektor menggunakan kabel yang membentang hingga ratusan atau bahkan ribuan meter di lingkungan yang keras. Kabel panjang menimbulkan banyak masalah bagi motor, memperkuat lonjakan tegangan dan menghasilkan harmonisa orde tinggi. Tegangan yang tidak stabil ini dapat merusak kabel dan motor.

Variable frequency drive menyebabkan distorsi tegangan, tegangan mode umum, tegangan puncak, dan harmonisa orde tinggi, yang mengakibatkan kerusakan kabel dan kegagalan isolasi motor dini, panas berlebih, pengurangan masa pakai, dan kerusakan bantalan. Hal ini juga menyebabkan penurunan efisiensi energi sistem, tingkat kegagalan yang lebih tinggi, penurunan kapasitas produksi, dan peningkatan biaya.

Pertanyaan Produk atau Solusi
Masalah Nyata di Lapangan
Masalah umum dalam skenario dunia nyata
  • 1

    Kenaikan suhu reaktor terlalu tinggi.

    Reaktor keluaran telah dipasang antara konverter frekuensi dan motor, tetapi kenaikan suhu reaktor terlalu tinggi.
  • 2

    Masa pakai berkurang

    Motor terlalu panas, kerusakan bantalan, masa pakai pendek.
  • 3

    Kerusakan kabel

    Kerusakan dini pada kabel antara konverter frekuensi dan motor.
  • 4

    Panjang kabel yang berlebihan

    Kabel antara inverter dan motor terlalu panjang, menyebabkan distorsi tegangan, tegangan mode umum, tegangan puncak, dan harmonik orde tinggi.
Filter DV/DT Reaktor Output Filter Gelombang Sinus

Filter DV/DT

Fungsi

1. Secara efektif mengurangi tegangan dv/dt pada terminal motor servo inverter;
2. Mencegah penuaan dini dan kerusakan kabel transmisi serta lilitan motor servo;
3. Memperpanjang masa pakai motor servo, meningkatkan keandalan servo dan waktu operasi;
4. Secara efektif menekan tegangan lonjakan pulsa pada terminal motor servo;
5. Mengurangi pemanasan motor dan keausan bantalan.

Fitur

Karakteristik: Daya tahan sangat baik, bebas perawatan, suhu operasi dapat disesuaikan hingga 140°F/60°C. Panjang kabel maksimum yang didukung diperpanjang hingga 300 meter.

Produk Terkait
Kami telah menerapkan banyak produk dalam solusi "Filter DV/DT"
dvdt-filter-63a-30kw-html
Filter DV/DT, Arus Terukur 80A, untuk Motor 30KW
Model: SKS-DVT-0080-4A/10
Deskripsi Filter Dv/dt Filter DV/DT SIKES mengurangi tekanan isolasi motor dengan menurunkan nilai dU/dt dari tegangan keluaran penggerak kecepatan variabel. Filter ini dapat digunakan dengan panjang kabel hingga 100 hingga 300 m tergantung pada mode...
dvdt-filter-2300a-1200kw-html
DV/DT filter, Rated Current 2300A ,for 1200KW Motor
Model: SKS-DVT-2300-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-1209a-630kw-html

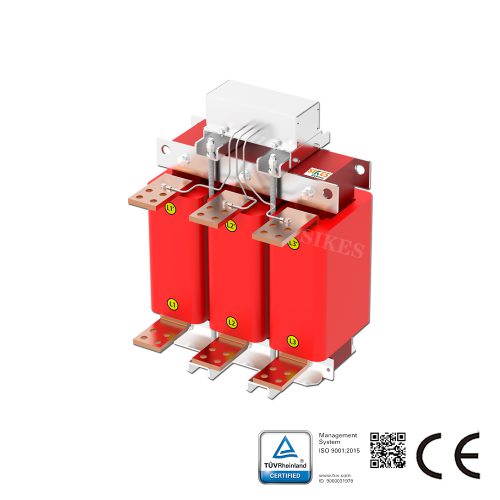

DV/DT filter, Rated Current 1209A ,for 630KW Motor
Model: SKS-DVT-1250-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-999a-560kw-html
DV/DT filter, Rated Current 999A ,for 560KW Motor
Model: SKS-DVT-1100-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...

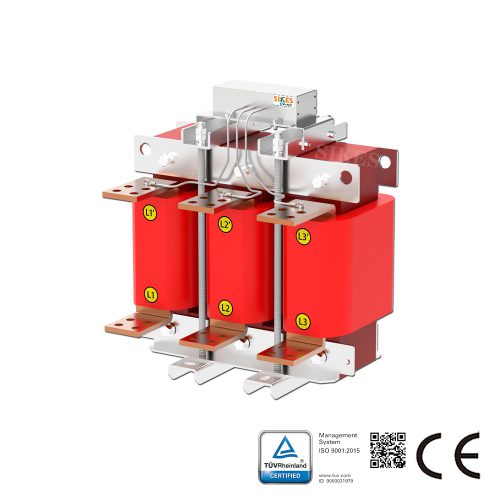

dvdt-filter-807a-450kw-html
DV/DT filter, Rated Current 807A ,for 450KW Motor
Model: SKS-DVT-0900-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-721a-400kw-html
DV/DT filter, Rated Current 721A ,for 400KW Motor
Model: SKS-DVT-0800-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...

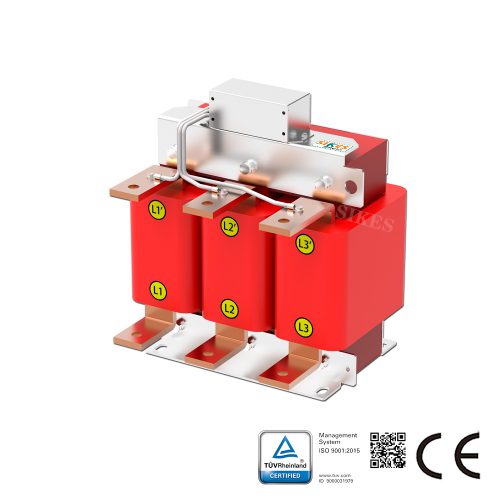

dvdt-filter-605a-315kw-html
DV/DT filter, Rated Current 605A ,for 315KW Motor
Model: SKS-DVT-0660-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-531a-280kw-html
DV/DT filter, Rated Current 531A ,for 280KW Motor
Model: SKS-DVT-0600-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...

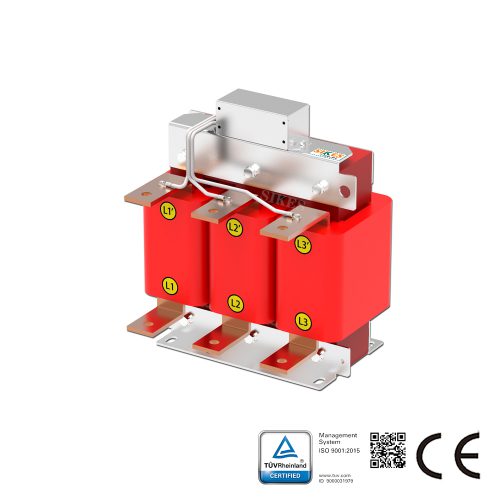

dvdt-filter-484a-250kw-html
DV/DT filter, Rated Current 484A ,for 250KW Motor
Model: SKS-DVT-0530-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-419a-220kw-html
DV/DT filter, Rated Current 419A ,for 220KW Motor
Model: SKS-DVT-0490-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-413a-200kw-html
DV/DT filter, Rated Current 413A ,for 200KW Motor
Model: SKS-DVT-0420-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-352a-185kw-html

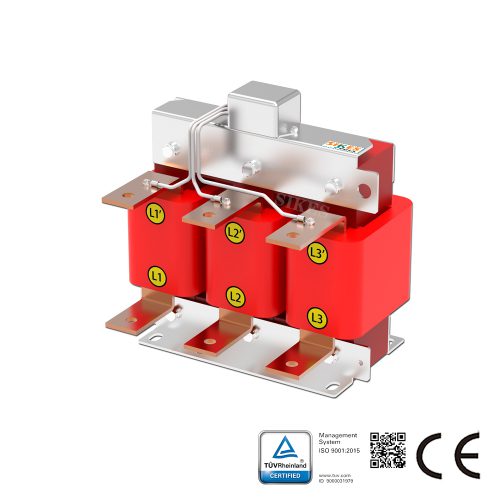

DV/DT filter, Rated Current 352A ,for 185KW Motor
Model: SKS-DVT-0390-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-317a-160kw-html
DV/DT filter, Rated Current 317A ,for 160KW Motor
Model: SKS-DVT-0330-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-262a-132kw-html
DV/DT filter, Rated Current 262A ,for 132KW Motor
Model: SKS-DVT-0290-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-214a-110kw-html
DV/DT filter, Rated Current 214A ,for 110KW Motor
Model: SKS-DVT-0250-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...

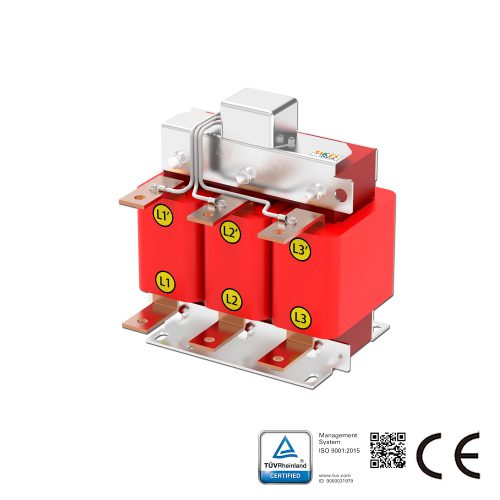

dvdt-filter-181a-90kw-html
DV/DT filter, Rated Current 181A ,for 90KW Motor
Model: SKS-DVT-0240-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...

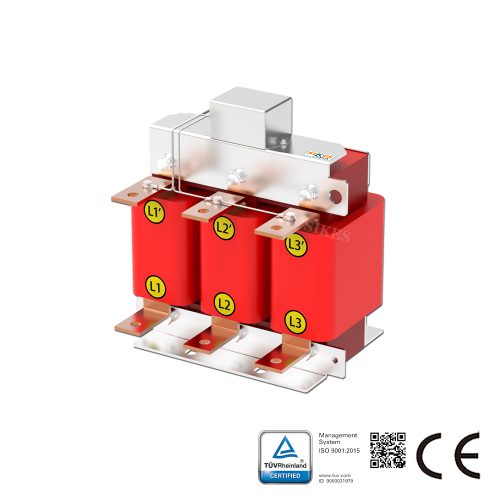

dvdt-filter-148a-75kw-html
DV/DT filter, Rated Current 148A ,for 75KW Motor
Model: SKS-DVT-0200-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...

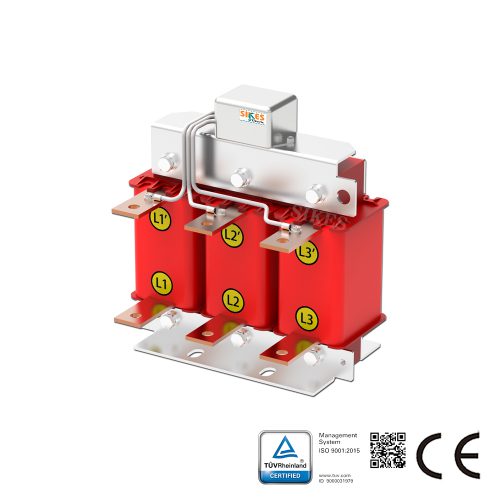

dvdt-filter-116a-55kw-html
DV/DT filter, Rated Current 116A ,for 55KW Motor
Model: SKS-DVT-0150-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-91a-45kw-html
DV/DT filter, Rated Current 91A ,for 45KW Motor
Model: SKS-DVT-0120-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-76a-37kw-html

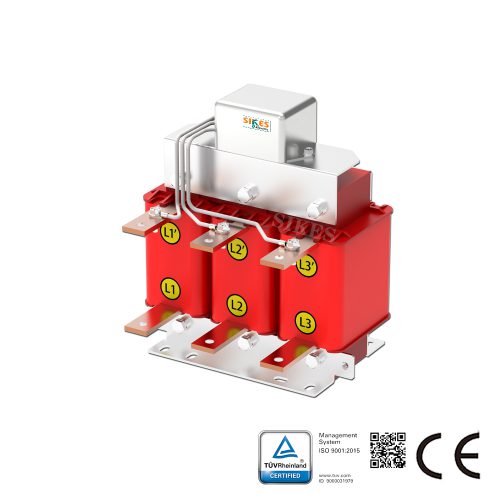

DV/DT filter, Rated Current 76A ,for 37KW Motor
Model: SKS-DVT-0090-4A/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...

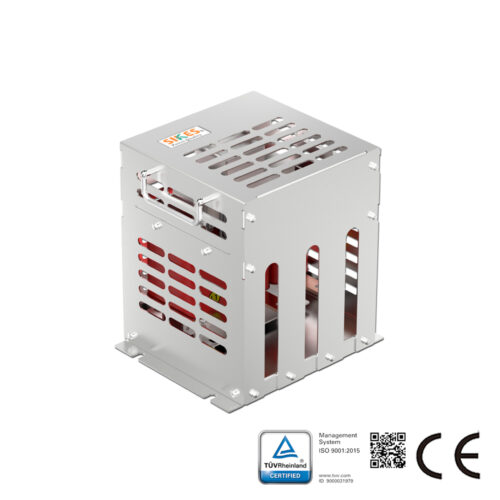

dv-dt-filter-rated-current-63a-for-30kw-motor-with-enclosed
Filter DV/DT, Arus Terukur 80A, untuk Motor 30KW dengan Tertutup dengan terlampir
Model: SKS-DVT-0080-4A/10
Deskripsi Filter Dv/dt Filter DV/DT SIKES mengurangi tekanan isolasi motor dengan menurunkan nilai dU/dt dari tegangan keluaran penggerak kecepatan variabel. Filter ini dapat digunakan dengan panjang kabel hingga 100 hingga 300 m tergantung pada mode...

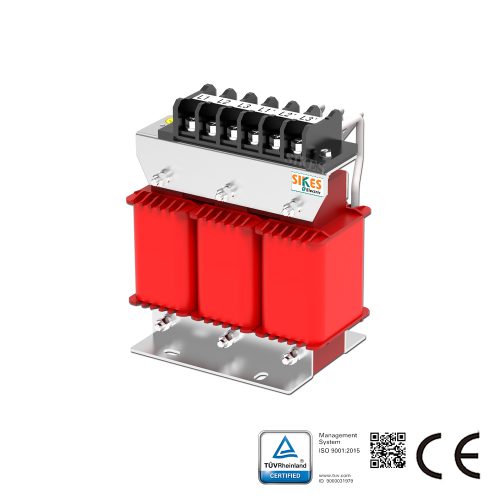

dvdt-filter-38a-18-5kw-html
DV/DT filter, Rated Current 38A ,for 18.5KW Motor
Model: SKS-DVT-0040-4A-10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-3a-1-5kw-html
DV/DT filter, Rated Current 3 A ,for 1.5KW Motor
Model: SKS-DVT-0005-4C/10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...

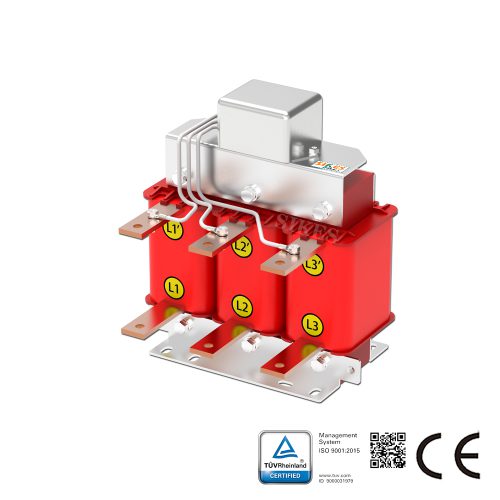

dvdt-filter-22kw-html
DV/DT filter, Rated Current 48A ,for 22KW Motor
Model: SKS-DVT-0060-4A-10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...

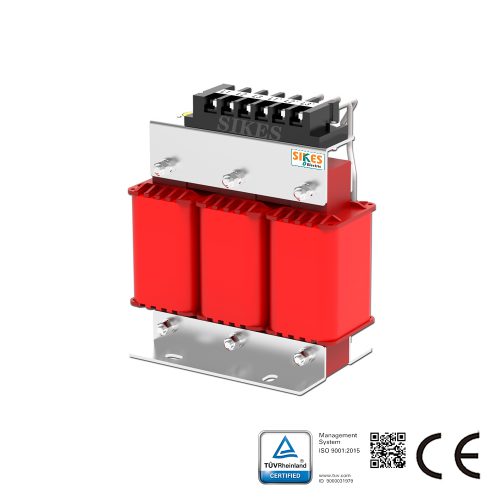

dvdt-filter-15kw-html
DV/DT filter, Rated Current 32A ,for 15KW Motor
Model: SKS-DVT-0040-4A-10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-11kw-html
DV/DT filter, Rated Current24A ,for 11KW Motor
Model: SKS-DVT-0030-4A-10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...

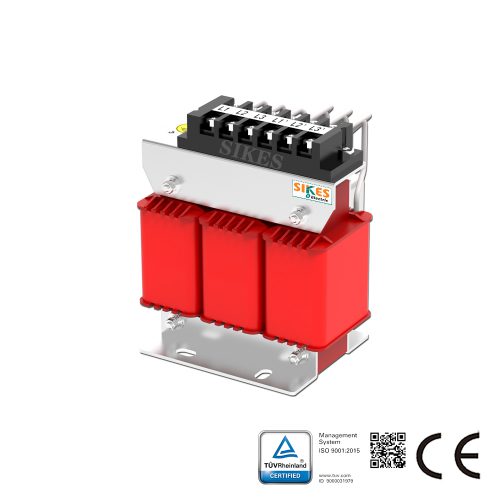

dvdt-filter-17a-7kw-html
DV/DT filter, Rated Current 17A ,for 7.5KW Motor
Model: SKS-DVT-0020-4A-10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-5-5kw-html
DV/DT filter, Rated Current 13A ,for 5.5KW Motor
Model: SKS-DVT-0015-4C-10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...

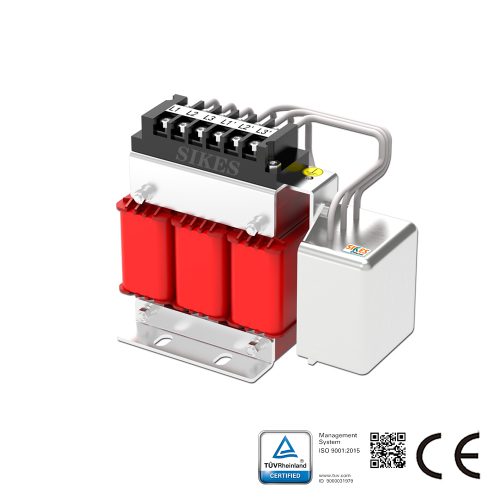

dvdt-filter-8a-3-7kw-html
DV/DT filter, Rated Current 8A for 3.7KW motor
Model: SKS-DVT-0010-4C-10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
dvdt-filter-2-2kw-html
DV/DT filter, Rated Current 6A for 2.2KW motor
Model: SKS-DVT-0007-4C-10
Dv/dt filters Description The SIKES DV/DT filters decreases the insulation stress of motors by lowering the dU/dt value of the variable speed drive output voltage. It can be utilized with cable lengths up to 100 to 300 m depending on the model. Moreo...
photovoltaic-isolation-transformer-40kva-html

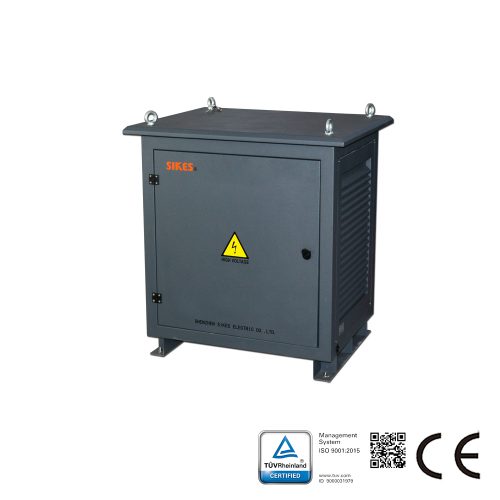

Photovoltaic isolation transformer encapsulated 40Kva for solar power or wind power transmission
Model: SKS-SGGF-40/0.38
Description of Power Isolation transformer: SGGF isolation transformer is used to solve the power grid problems which are caused by the photovoltaic power generation,such as harmonic, flickering, DC magnetic bias, and over voltage. Transformers are u...

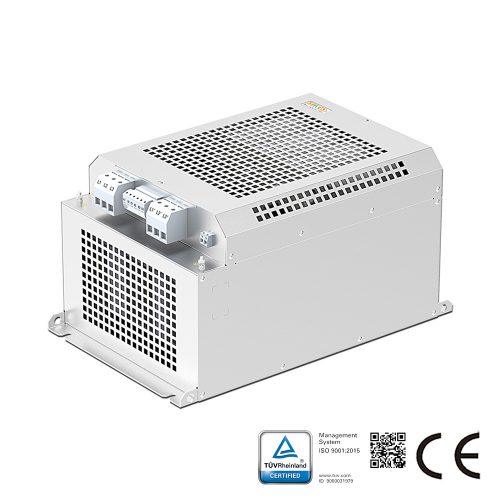

harmonic-filter-for-abb-drives-pihf-rated-current-72a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 72A
Model: SKS-PIHF-0075-4-10
Seri SIKES Passive Harmonic Filter PIHF dirancang untuk dipasangkan dengan ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 rentang daya penuh. Optimalkan kinerja harmonik Harmonic Filter PIHF adalah solusi harmonik yang hemat biaya. Dibandi...

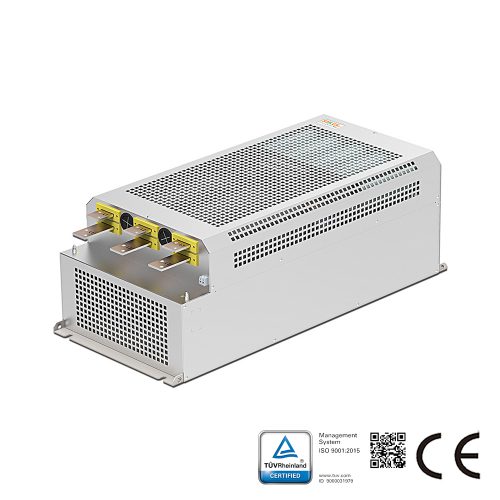

harmonic-filter-for-abb-drives-pihf-rated-current-430a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 430A
Model: SKS-PIHF-0430-4-10
Seri SIKES Passive Harmonic Filter PIHF dirancang untuk dipasangkan dengan ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 rentang daya penuh. Optimalkan kinerja harmonik Harmonic Filter PIHF adalah solusi harmonik yang hemat biaya. Dibandi...
harmonic-filter-for-abb-drives-pihf-rated-current-363a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 363A
Model: SKS-PIHF-0363-4-10
SIKES Passive Harmonic Filter PIHF Series are Designed for matched with ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 full power range. Optimize harmonic performance Harmonic Filter PIHF is a cost-effective Harmonic solution. Compared to ...
harmonic-filter-for-abb-drives-pihf-rated-current-293a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 293A
Model: SKS-PIHF-0290-4-10
Seri SIKES Passive Harmonic Filter PIHF dirancang untuk dipasangkan dengan ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 rentang daya penuh. Optimalkan kinerja harmonik Harmonic Filter PIHF adalah solusi harmonik yang hemat biaya. Dibandi...
harmonic-filter-for-abb-drives-pihf-rated-current-246a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 246A
Model: SKS-PIHF-0240-4-10
Seri SIKES Passive Harmonic Filter PIHF dirancang untuk dipasangkan dengan ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 rentang daya penuh. Optimalkan kinerja harmonik Harmonic Filter PIHF adalah solusi harmonik yang hemat biaya. Dibandi...

Reaktor Output

Fungsi

Menekan harmonisa, mengurangi pemanasan motor, memperpanjang umur motor, menurunkan kebisingan motor, mengurangi kerugian arus eddy, dan melindungi perangkat switching daya di dalam inverter. Mendukung perpanjangan panjang kabel maksimum hingga 90 meter.

Fitur

Daya tahan yang sangat baik, operasi bebas perawatan, suhu operasi dapat dirancang sesuai kebutuhan: hingga 140°F/60°C.

Produk Terkait
Kami telah menerapkan banyak produk dalam solusi "Reaktor Output"
photovoltaic-isolation-transformer-40kva-html
Photovoltaic isolation transformer encapsulated 40Kva for solar power or wind power transmission
Model: SKS-SGGF-40/0.38
Description of Power Isolation transformer: SGGF isolation transformer is used to solve the power grid problems which are caused by the photovoltaic power generation,such as harmonic, flickering, DC magnetic bias, and over voltage. Transformers are u...
harmonic-filter-for-abb-drives-pihf-rated-current-72a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 72A
Model: SKS-PIHF-0075-4-10
Seri SIKES Passive Harmonic Filter PIHF dirancang untuk dipasangkan dengan ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 rentang daya penuh. Optimalkan kinerja harmonik Harmonic Filter PIHF adalah solusi harmonik yang hemat biaya. Dibandi...
harmonic-filter-for-abb-drives-pihf-rated-current-430a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 430A
Model: SKS-PIHF-0430-4-10
Seri SIKES Passive Harmonic Filter PIHF dirancang untuk dipasangkan dengan ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 rentang daya penuh. Optimalkan kinerja harmonik Harmonic Filter PIHF adalah solusi harmonik yang hemat biaya. Dibandi...
harmonic-filter-for-abb-drives-pihf-rated-current-363a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 363A
Model: SKS-PIHF-0363-4-10
SIKES Passive Harmonic Filter PIHF Series are Designed for matched with ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 full power range. Optimize harmonic performance Harmonic Filter PIHF is a cost-effective Harmonic solution. Compared to ...
harmonic-filter-for-abb-drives-pihf-rated-current-293a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 293A
Model: SKS-PIHF-0290-4-10
Seri SIKES Passive Harmonic Filter PIHF dirancang untuk dipasangkan dengan ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 rentang daya penuh. Optimalkan kinerja harmonik Harmonic Filter PIHF adalah solusi harmonik yang hemat biaya. Dibandi...
harmonic-filter-for-abb-drives-pihf-rated-current-246a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 246A
Model: SKS-PIHF-0240-4-10
Seri SIKES Passive Harmonic Filter PIHF dirancang untuk dipasangkan dengan ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 rentang daya penuh. Optimalkan kinerja harmonik Harmonic Filter PIHF adalah solusi harmonik yang hemat biaya. Dibandi...

Filter Gelombang Sinus

Filter gelombang sinus SIKES dapat membentuk bentuk gelombang tegangan keluaran konverter frekuensi menjadi gelombang sinus yang hampir sempurna.

Fungsi

Kemampuan tak tertandingi dalam membersihkan PWM
Hampir menghilangkan harmonisa frekuensi tinggi dan lonjakan tegangan
Mengurangi pemanasan motor dan memperpanjang umur layanan motor
Meningkatkan kinerja sistem dan meningkatkan efisiensi
Mendukung panjang kabel maksimum hingga 2000 meter

Fitur

Daya tahan yang sangat baik, bebas perawatan, suhu operasi dapat dirancang sesuai kebutuhan: hingga 140°F/60°C

Aplikasi

Industri minyak dan gas, industri pengolahan air limbah, industri pertambangan dan peleburan, industri pembuatan kertas dan percetakan.

Produk Terkait
Kami telah menerapkan banyak produk dalam solusi "Filter Gelombang Sinus"
sine-wave-filter-rated-current-75a-230v
Filter gelombang sinus, Arus terukur 75A, 230V
Model: SKS-SF-0075-2A/05-A0
Deskripsi Filter Gelombang Sinus: Filter Gelombang Sinus Seri SF mengubah sinyal keluaran PWM dari penggerak motor menjadi gelombang sinus yang halus dengan residu rendah; Mengurangi fenomena resonansi yang disebabkan oleh kapasitansi terdistribusi d...
sine-wave-filter-rated-current-2600a-400v-html

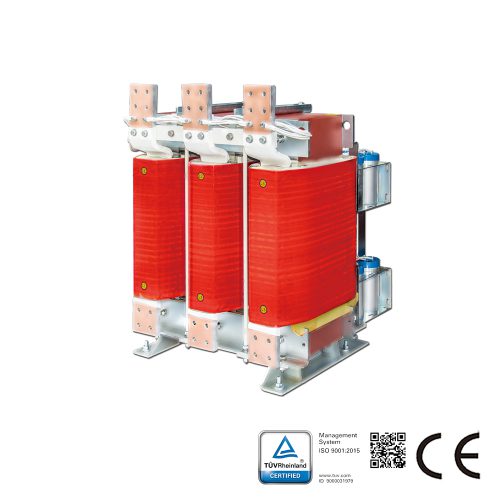

Sine wave filter, Rated Current 2600A, 1400KW, 400V
Model: SKS-SF-2600-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...

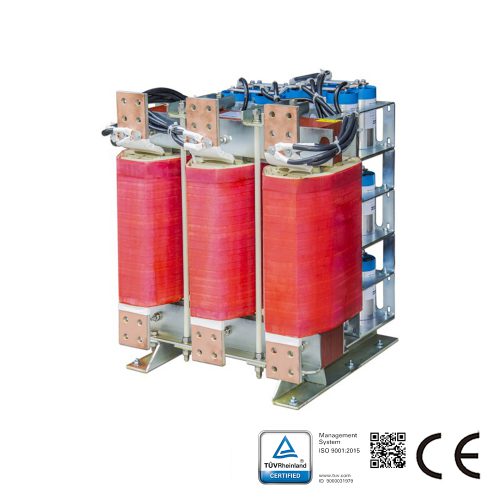

sine-wave-filter-rated-current-1150a-400v-html
Sine wave filter, Rated Current 1150A, 580KW, 400V
Model: SKS-SF-1150-AB-4-8
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...

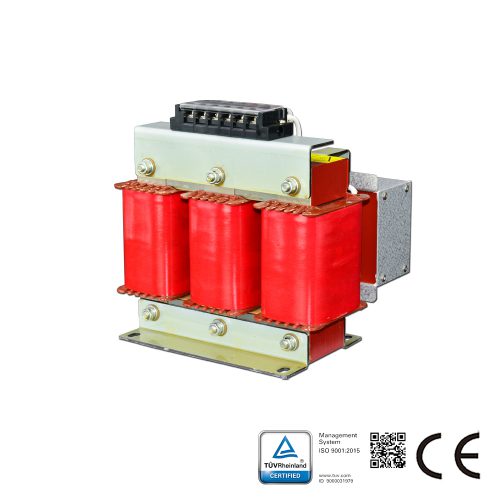

sine-wave-filter-rated-current-8p7a-html
Sine wave filter, Rated Current 8.7A, 4KW, 400V
Model: SKS-SF-08P7-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...

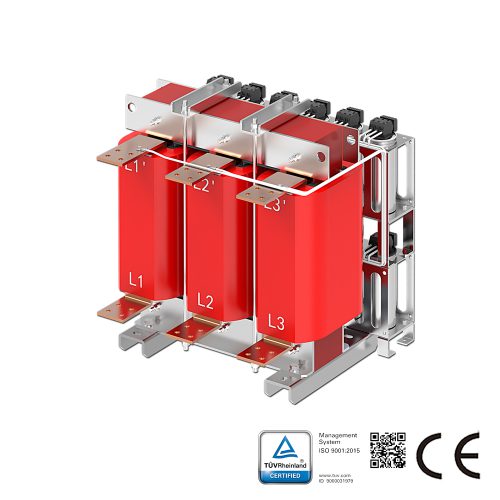

sine-wave-filter-rated-current-807a-html
Sine wave filter, Rated Current 807A, 450KW, 400V
Model: SKS-SF-0807-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-800a-690v-html
Sine wave filter, Rated Current 630KW, 800A, 690V, New design
Model: SKS-SF-0800-6A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-660a-690v-html
Sine wave filter, Rated Current 660A ,630KW ,690V
Model: SKS-SF-0660-6A-05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-484a-400v-html
Sine wave filter, Rated Current 484A ,250KW ,400V
Model: SKS-SF-0484-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-419a-html
Sine wave filter, Rated Current 419A ,New design
Model: SKS-SF-0419-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-352a-400v-html
Sine wave filter, Rated Current 352A ,400V
Model: SKS-SF-0352-AB/4-JG-2
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-350a-460v-html
Sine wave filter, Rated Current 350A, 460V, 1000Hz
Model: SKS-SF-0350-5A100/10
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-320a-460v-html
Sine wave filter, Rated Current 320A ,150KW ,460V
Model: SKS-SF-0320-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-317a-400v-html
Sine wave filter, Rated Current 317A ,160KW ,400V
Model: SKS-SF-0317-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-262a-html
Sine wave filter, Rated Current 262A ,New design
Model: SKS-SF-0262-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-215-3a-480v-html
Sine wave filter, Rated Current 215.3A ,480V
Model: SKS-SF-0215-5A20/10-JG-2
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-214a-html
Sine wave filter, Rated Current 214A ,New design
Model: SKS-SF-0214-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
single-phase-sine-wave-filter-rated-current-200a-html
Single-phase sine wave filter 200A
Model: SKS-SF-0200-2A/05-1P
Brief description of sine wave filter: Sike’s sine wave filter is used in motor drives in many transmission systems (especially in frequency converters or switching power supply devices). Passive filters are designed to convert the non-sinusoid...
sine-wave-filter-rated-current-181a-html
Sine wave filter, Rated Current 181A ,New design
Model: SKS-SF-0181-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-148a-html
Sine wave filter, Rated Current 148A ,New design
Model: SKS-SF-0148-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-116a-html
Sine wave filter, Rated Current 116A ,New design
Model: SKS-SF-0116-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
single-phase-sine-wave-filter-rated-current-100a-html
Single-phase sine wave filter 100A
Model: SKS-SF-0100-2A/05-1P
Brief description of sine wave filter: Sike’s sine wave filter is used in motor drives in many transmission systems (especially in frequency converters or switching power supply devices). Passive filters are designed to convert the non-sinusoid...
sine-wave-filter-rated-current-76a-new-design
Sine wave filter, Rated Current 91A ,New design
Model: SKS-SF-0076-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-76a-html
Filter gelombang sinus, Arus terukur 76A, Desain baru
Model: SKS-SF-0076-4A/05
Deskripsi Filter Gelombang Sinus: Filter Gelombang Sinus Seri SF mengubah sinyal keluaran PWM dari penggerak motor menjadi gelombang sinus yang halus dengan residu rendah; Mengurangi fenomena resonansi yang disebabkan oleh kapasitansi terdistribusi d...
sine-wave-plus-filter-rated-current-75a-html
Sine wave filter plus EMC, with DC link connection Rated Current 30KW 75 A
Model: SKS-SF-0075-4C/03-LF-B0
Sine wave plus EMC filter  Description : This is a Sine Wave and EMC Output Filter for Motor Drives with a DC Link Access. It will eliminate the disturbance between phase and ground. Normal sine wave filter only works between phases. With improved si...
sine-wave-filter-rated-current-63a-html
Sine wave filter, Rated Current 63A ,New design
Model: SKS-SF-0063-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-60a-690v-html
Sine wave filter, Rated Current 55KW ,60A ,690V ,New design
Model: SKS-SF-0060-6A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-48a-html
Sine wave filter, Rated Current 48A ,New design
Model: SKS-SF-0048-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-38a-html
Sine wave filter, Rated Current 38A ,New design
Model: SKS-SF-0038-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
single-phase-sine-wave-filter-29a-html
Sine wave filter, Rated Current 29A ,New design
Model: SKS-SF-0029-2A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-29a-220v1p-html
Sine wave filter, Rated Current 29A ,single phase,220V
Model: SKS-SF-0029-2A5/05-1P
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-32a-html
Sine wave filter, Rated Current 32A ,New design
Model: SKS-SF-0032-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-24a-html
Sine wave filter, Rated Current 24A ,New design
Model: SKS-SF-0024-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
single-phase-sine-wave-filter-21a-3-7kw-html
Sine wave filter, Rated Current 21A ,New design
Model: SKS-SF-0021-2A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-22a-220v1p-html
Sine wave filter, Rated Current 22A ,single phase,220V
Model: SKS-SF-0022-2A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
single-phase-sine-wave-filter-rated-current-20a-html
Single-phase sine wave filter 2.2KW 20A
Model: SKS-SF-0020-1J6/1P
Brief description of sine wave filter: Sike’s sine wave filter is used in motor drives in many transmission systems (especially in frequency converters or switching power supply devices). Passive filters are designed to convert the non-sinusoid...
sine-wave-filter-rated-current-17a-html
Sine wave filter, Rated Current 17A ,New design
Model: SKS-SF-0017-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-16a-220v-html
Sine wave filter, Rated Current 16A,220v ,New design
Model: SKS-SF-0016-2A/05-1P
Description of Sine wave filter： SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(...
sine-wave-filter-rated-current-13a-html
Sine wave filter, Rated Current 13A ,New design
Model: SKS-SF-0013-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-plus-filter-rated-current-10a-html
Sine wave filter plus EMC, with DC link connection Rated Current 10A
Model: SKS-SF-0010-4C2/DC-L
Sine wave plus EMC filter  Description : This is a Sine Wave and EMC Output Filter for Motor Drives with a DC Link Access. It will eliminate the disturbance between phase and ground. Normal sine wave filter only works between phases. With improved si...
sine-wave-filter-rated-current-10a-4kw-html
Sine wave filter, Rated Current 10A 4kw ,New design
Model: SKS-SF-0010-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-8a-html
Sine wave filter, Rated Current 8A ,New design
Model: SKS-SF-0008-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-6a-2-2kw-html
Sine wave filter, Rated Current 6A 2.2kw ,New design
Model: SKS-SF-0006-4A/05
Sine wave filter Description : SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(lo...
sine-wave-filter-rated-current-3a-open-frame-html
Sine wave filter Rated Current 3A , open frame design
Model: SKS-SF-0003-4A/05
Description of Sine wave filter： SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(...
sine-wave-filter-rated-current-3a-250v-html
Sine wave filter, Rated Current3A,250v ,New design
Model: SKS-SF-0003-2A/05
Description of Sine wave filter： SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(...
sine-wave-filter-rated-current-67a-html
Sine wave filter, Rated Current 67A ,New design
Model: SKS-SWF-0067-CL-4
Description of Sine wave filter： SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(...
sine-wave-filter-rated-current-54a-html
Sine wave filter, Rated Current 54A ,New design
Model: SKS-SWF-0054-CL-4
Description of Sine wave filter： SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(...
sine-wave-filter-rated-current-40a-html
Sine wave filter, Rated Current 40A ,New design
Model: SKS-SWF-0040-CL-4
Description of Sine wave filter： SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(...
sine-wave-filter-rated-current-34a-html
Sine wave filter, Rated Current 34A ,New design
Model: SKS-SWF-0034-CL-4
Description of Sine wave filter： SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(...
sine-wave-filter-rated-current-29a-html
Sine wave filter, Rated Current 29A ,New design
Model: SKS-SWF-0029-CL-4
Description of Sine wave filter： SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(...
sine-wave-filter-rated-current-22a-html
Sine wave filter, Rated Current 24A ,New design
Model: SKS-SWF-0024-CL-4
Description of Sine wave filter： SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(...
sine-wave-filter-rated-current-15a-html
Sine wave filter, Rated Current 15A ,New design
Model: SKS-SWF-0015-CL-4
Description of Sine wave filter： SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(...
sine-wave-filter-rated-current-11a-html
Sine wave filter, Rated Current 11A ,New design
Model: SKS-SWF-0011-CL-4
Description of Sine wave filter： SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(...
sine-wave-filter-rated-current-455a-html
Sine wave filter, 450kw, Rated Current 445A ,690V,New design
Model: SKS-SWF-0450-6
Description of Sine wave filter： SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(...
sine-ware-filter-for-rail-transportation-0016-html
Sine ware filter for Rail & Transportation, Rated Current 16A ,IP54
Model: SKS-SWF-0016-ZC-4
Description of Sine wave filter： SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(...
sine-wave-filter-550a-600kw-html
Sine wave filter 720V ,550A ,600KW , Separate
Model: SKS-SWFO-0550-CB-7
Description of Sine wave filter： SWF Series Sine Wave Filters convert the PWM output signal of motor drives into a smooth sine wave with low residual; Reduce the resonance phenomenon caused by distributed capacitance and inductance of the long cable(...
photovoltaic-isolation-transformer-40kva-html
Photovoltaic isolation transformer encapsulated 40Kva for solar power or wind power transmission
Model: SKS-SGGF-40/0.38
Description of Power Isolation transformer: SGGF isolation transformer is used to solve the power grid problems which are caused by the photovoltaic power generation,such as harmonic, flickering, DC magnetic bias, and over voltage. Transformers are u...
harmonic-filter-for-abb-drives-pihf-rated-current-72a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 72A
Model: SKS-PIHF-0075-4-10
Seri SIKES Passive Harmonic Filter PIHF dirancang untuk dipasangkan dengan ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 rentang daya penuh. Optimalkan kinerja harmonik Harmonic Filter PIHF adalah solusi harmonik yang hemat biaya. Dibandi...
harmonic-filter-for-abb-drives-pihf-rated-current-430a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 430A
Model: SKS-PIHF-0430-4-10
Seri SIKES Passive Harmonic Filter PIHF dirancang untuk dipasangkan dengan ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 rentang daya penuh. Optimalkan kinerja harmonik Harmonic Filter PIHF adalah solusi harmonik yang hemat biaya. Dibandi...
harmonic-filter-for-abb-drives-pihf-rated-current-363a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 363A
Model: SKS-PIHF-0363-4-10
SIKES Passive Harmonic Filter PIHF Series are Designed for matched with ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 full power range. Optimize harmonic performance Harmonic Filter PIHF is a cost-effective Harmonic solution. Compared to ...
harmonic-filter-for-abb-drives-pihf-rated-current-293a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 293A
Model: SKS-PIHF-0290-4-10
Seri SIKES Passive Harmonic Filter PIHF dirancang untuk dipasangkan dengan ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 rentang daya penuh. Optimalkan kinerja harmonik Harmonic Filter PIHF adalah solusi harmonik yang hemat biaya. Dibandi...
harmonic-filter-for-abb-drives-pihf-rated-current-246a-html
Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 246A
Model: SKS-PIHF-0240-4-10
Seri SIKES Passive Harmonic Filter PIHF dirancang untuk dipasangkan dengan ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 rentang daya penuh. Optimalkan kinerja harmonik Harmonic Filter PIHF adalah solusi harmonik yang hemat biaya. Dibandi...
Perbandingan Solusi
Bandingkan perbedaan antara setiap solusi dalam sebuah tabel
Solusi Seri Produk Parameter Utama Enclosure Metode Pendinginan Deskripsi Kinerja
Filter Gelombang Sinus – Dengan Enclosure SWF THDv 5% IP20 AF Kinerja penyaringan PWM yang tak tertandingi, hampir menghilangkan harmonik frekuensi tinggi dan lonjakan tegangan, mengurangi pemanasan motor, memperpanjang umur motor, meningkatkan kinerja dan efisiensi sistem, dan mendukung panjang kabel maksimum hingga 2000 meter. ★★★★★
Filter Gelombang Sinus SF THDv 5% / AN Kinerja penyaringan PWM yang tak tertandingi, hampir menghilangkan harmonik frekuensi tinggi dan lonjakan tegangan, mengurangi pemanasan motor, memperpanjang umur motor, meningkatkan kinerja dan efisiensi sistem, dan mendukung panjang kabel maksimum hingga 2000 meter. ★★★★★
Filter DV/DT DVT Tegangan Puncak ≤ 1000V / AN 1. Secara efektif mengurangi tegangan dv/dt di terminal motor servo;
2. Mencegah penuaan dini dan kerusakan kabel transmisi dan belitan motor servo;
3. Memperpanjang umur motor servo, meningkatkan keandalan dan waktu aktif sistem;
4. Mengurangi tegangan puncak pulsa di terminal motor;
5. Meminimalkan pemanasan motor dan keausan bantalan; mendukung panjang kabel maksimum hingga 300 meter.		 ★★★★
Reaktor Output OCL Tingkat Reaktansi: 1%–5% / AN Menekan harmonik, mengurangi pemanasan motor, memperpanjang umur motor, mengurangi kebisingan motor, meminimalkan kerugian arus eddy, dan melindungi komponen switching daya internal inverter. Mendukung panjang kabel maksimum hingga 100 meter. ★★★
Filter Harmonik untuk VFDFilter Gelombang Sinus untuk VFDReaktor Saluran ACFilter Harmonik yang Cocok dengan ABB Low Voltage DriveBank Beban Resistif DC
Bahasa Indonesia
Copyright © 2026, Shenzhen Sikes Electric Co., Ltd, Hak Cipta Dilindungi Undang-Undang. Semua Tag Pemberitahuan Cookie Kebijakan Privasi Ketentuan Penggunaan
