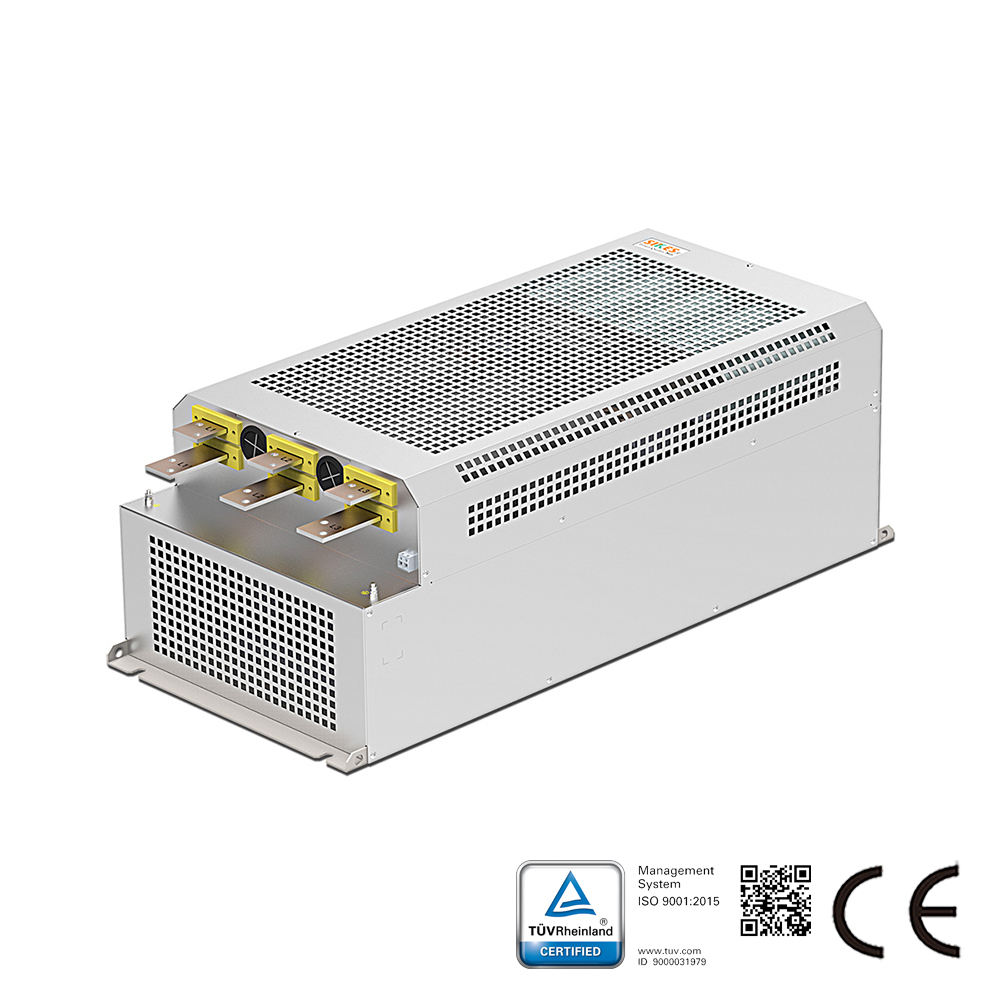

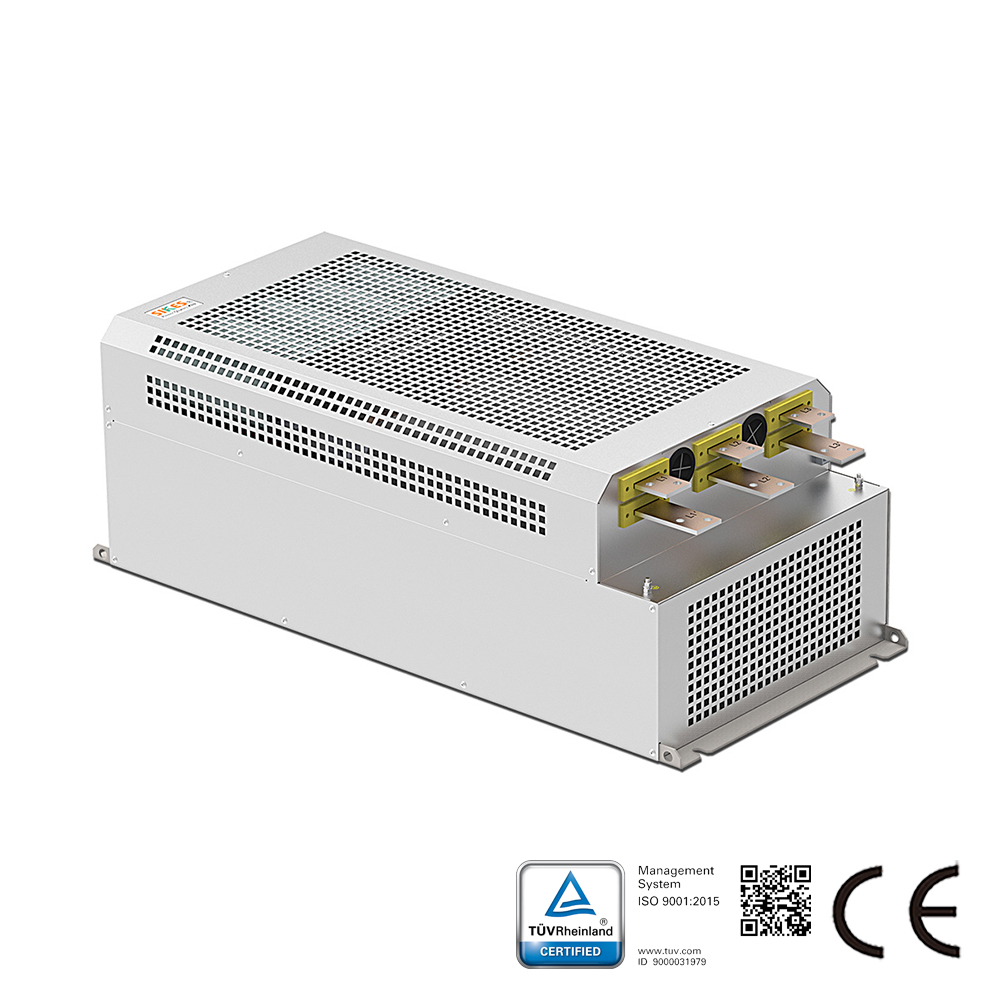

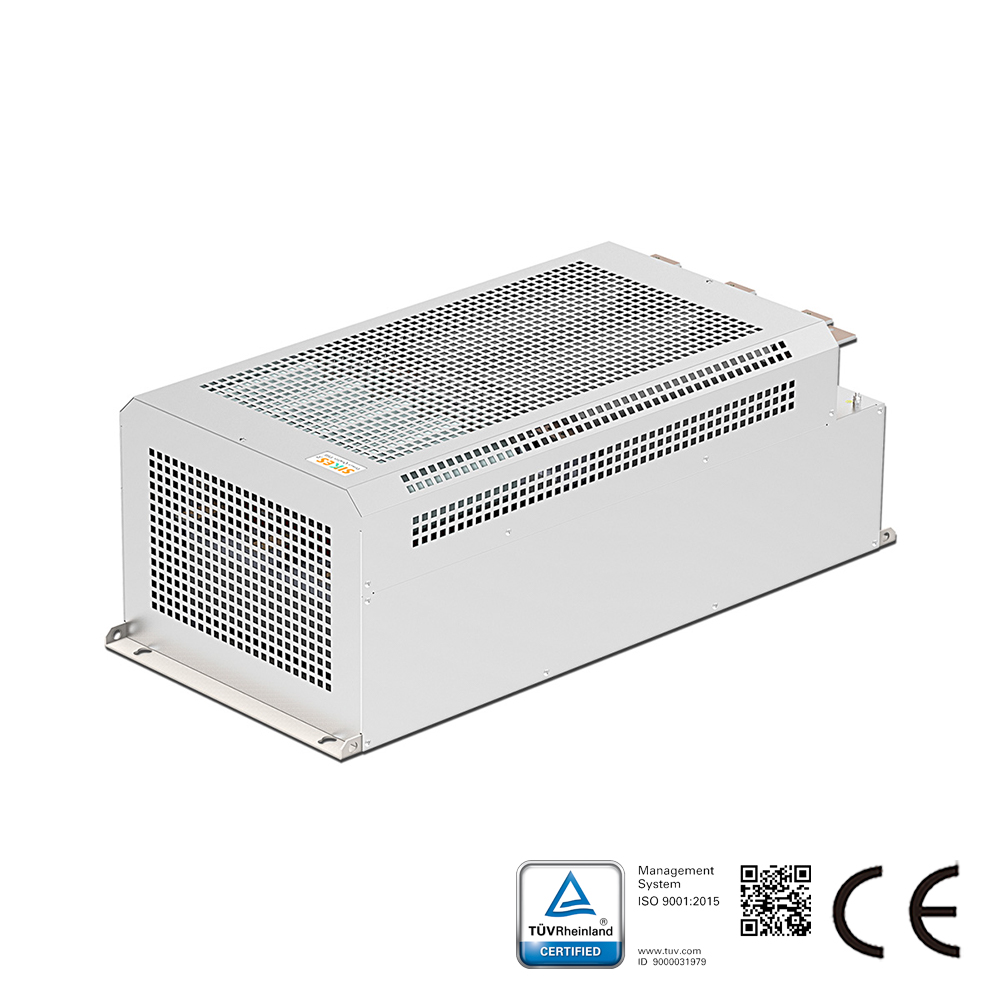

Filter Harmonik Pasif PIHF Dirancang untuk dicocokkan dengan ABB Low Voltage Drive, Arus Terukur 363A

Model: SKS-PIHF-0363-4-10

SIKES Passive Harmonic Filter PIHF Series are Designed for matched with ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 full power range. Optimize harmonic performance Harmonic Filter PIHF is a cost-effective Harmonic solution. Compared to traditional harmonic trap filters PIHF offers a smaller foot print and higher harmonic reduction. When connected in front of a ABB Low Voltage Drive, the harmonic current distortion generated back to the mains is reduced to 10% Total Harmonic Current Distortion at full load. (System requirements: THVD < 2%, line voltage unbalance < 1%) With a >98% efficiency the Passive Harmonic Filters PIHF offer cost effective and very robust harmonic solutions specifically for ABB Low Voltage Drive (ACS510, ACx550, ACx580, ACS880 full power range....

Pertanyaan Produk atau Solusi

Obrolan Langsung

Bagikan ke:

Spesifikasi

Rentang Arus Nominal (A)	363
Rentang Tegangan Nominal (V)	400
Frekuensi Operasi	50 Hz
Fase	3 Fase
Rentang Daya (KW)	200
THDi	<10%
Jenis Optik	Pasif

Detail Produk

SIKES Passive Harmonic Filter PIHF Series are Designed for matched with ABB Low Voltage AC Driver, ACS510, ACx550, ACx580, ACS880 full power range.

Optimize harmonic performance

Harmonic Filter PIHF is a cost-effective Harmonic solution. Compared to traditional harmonic trap filters PIHF offers a smaller foot print and higher harmonic reduction.

When connected in front of a ABB Low Voltage Drive, the harmonic current distortion generated back to the mains is reduced to 10% Total Harmonic Current Distortion at full load. (System requirements: THVD < 2%, line voltage unbalance < 1%)

With a >98% efficiency the Passive Harmonic Filters PIHF offer cost effective and very robust harmonic solutions specifically for ABB Low Voltage Drive (ACS510, ACx550, ACx580, ACS880 full power range.

As stand-alone options the Advanced Harmonic Filters feature a compact housing that is easily integrated into existing panel space. This makes them well-suited for retrofit applications with limited adjustments of the frequency converter.

Fitur

Spesifikasi
Tegangan Saluran: 380-415 VAC (50 Hz);
Peringkat Enclosure: IP00;
Arus Lebih: 160% selama 60 detik;
Efisiensi>0.98

Faktor Daya Sebenarnya
0,85 pada beban 50%;
0,99 pada beban 100%.

Suhu Lingkungan: -13º~113º F (-25º~45ºC) tanpa derating.

Fitur dan manfaat:
Dirancang untuk kinerja yang cocok dengan ABB Low Voltage Drive;
Startup ramah pengguna; tidak diperlukan penyesuaian;
Tidak memerlukan perawatan rutin;

Dirancang untuk memenuhi pedoman batas distorsi arus:
IEEE 519
EN 61000-2-4
EN 61000-2-2
IEC/EN 61000-3-2
IEC/EN 61000-3-12
IEC/EN 61000-3-4
